SXM BEVELLING MACHINE
Float Glass and Mirror Beveling Edging Polishing Machine with PLC

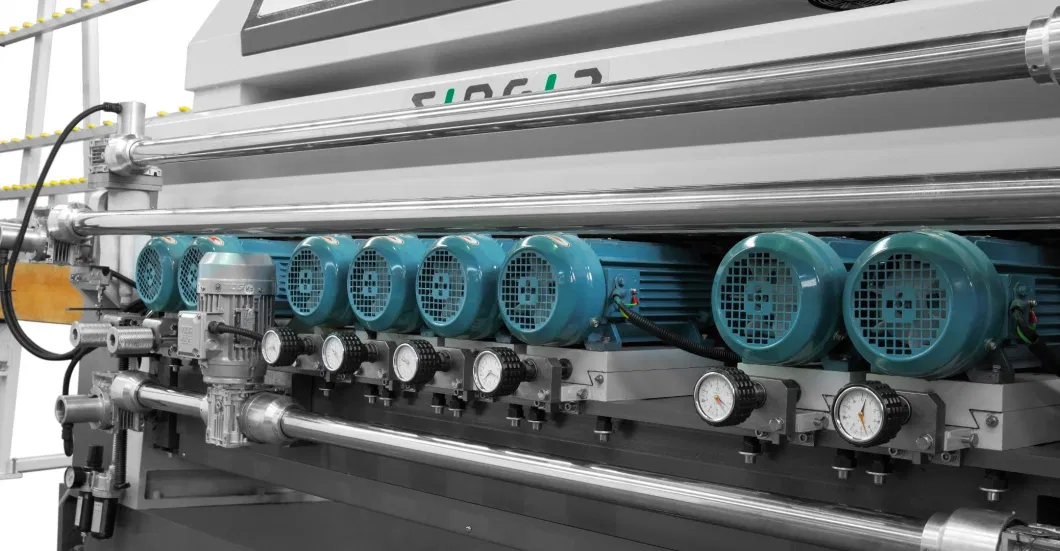

(The photo is 9 motors. The configuration of the machine is mainly subject to actual conditions. )

EXCELLENCE IN THE MOST DEMANDING PROCESSING
Bevelling has always been considered as the most difficult type of processing. Bevelling machines have to be extremely precise to produce the quality of the bevel, the accuracy of the processing and the dimensional tolerances on the angles. SINGIP has been dedicated in this field for many years, offering models that have high productivity but do not compromise on the quality of the end product.

Float Glass and Mirror Beveling Edging Polishing Machine with PLC




QUALITY FIRST
SINGIP conveyor is equipped with pads in 40cr steel without the use of ball bearings, all the pads surface error range with 0.02mm, producing very high precision that is an essential element in bevel processing. We adopt thick cast iron on main structure (bedplate, beams and stand column) and high precision guide rail to eliminate vibrations and giving excellent grinding quality.

Float Glass and Mirror Beveling Edging Polishing Machine with PLC

Float Glass and Mirror Beveling Edging Polishing Machine with PLC

MINIMIZED MAINTENANCE COSTS
Singip bevellers are recognized for their reliability, minimal maintenance and longevity. The maintenance free conveyor, the centralized lubrication system and the inlet and outlet arms equipped with synchronous belt that can be individually replaced are common features for all models.
 Float Glass and Mirror Beveling Edging Polishing Machine with PLC


USER-FRIENDLINESS
The touch screen control panels of SINGIP bevel machine stand for user-friendliness, flexibility and functionality. They can automatically perform calculations, report errors and prevent operation with incorrect parameters. The design of the work to be performed is displayed.

Float Glass and Mirror Beveling Edging Polishing Machine with PLC

Our bevelling machine equipped with a new structure electric cabinet. Its' control panel is covered with glue that can protect the function sign permanently without faded. Bright colors, icons and drawings are used for a fast learning of the functions. The air bar support design and heavy duty contactor help you check the cabinet easily. The advanced features provide statistics related to production.

Float Glass and Mirror Beveling Edging Polishing Machine with PLC


 Float Glass and Mirror Beveling Edging Polishing Machine with PLC


EXCLUSIVE SOLUTIONS

Bevelling has an extremely high request on polish. Singip machine can assemble the air compression device on bright polish wheels; keep a wheel touch the glass heavy enough and a unique design to protect the wheel surface from crash

Float Glass and Mirror Beveling Edging Polishing Machine with PLC



SXM371SP  Wheel Placement

Grinding head

name     data
Grinding head 1#
rough grinding
Grinding head 2#
rough grinding
Grinding head 3#
rough grinding
Grinding head 4#
fine grinding
Grinding head 5#
fine grinding
Grinding head 6#
fine grinding
    Grinding head 7#
fine grinding
Grinding head 8#
polishing
Grinding head 9#
polishing
Grinding head 10#
polishing
Grinding head 11#
polishing
MotorPower(KW)2.22.22.22.22.22.22.22.21.51.51.5/4pole
Speed28002800280028002800280028002800140014001400

NameDiamond wheelDiamond wheelDiamond wheelPE WheelResin wheelResin wheelResin wheelResin wheelFelt wheelFelt wheelFelt wheel
Grinding wheelDomesticDomesticDomesticDomesticDomesticDomesticDomesticDomesticItalyItalyItaly
