Professional Black Folding Metal Detector Industrial Operate Current < 50MA
Functions and Features
Check dangerous goods and hauls
Light weight and portable design
Good sensitivity
Easy to handle and use
Sound: Speaker
Vibration Control: On/Off Switch; Low sensitivity Switch Sensitivity Adjuster
High Sensitivity 20mm at Pin; 60mm at USD 25 Cent
Low Sensitivity Detector only respond to bigger metal article
Such as a 38Caliber hand gun (35cm), Pen knife (25cm), Razor blade (28cm) etc.

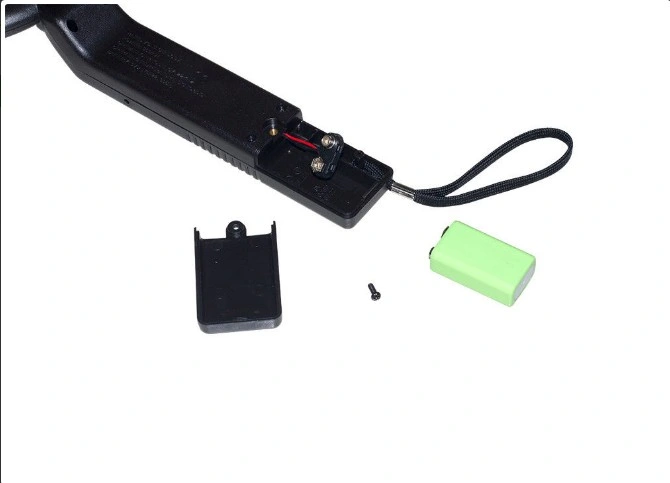

Power: 9V (6F22) alkaline battery, rechargeable battery
Operate Frequency: 22 KHz
Operating Temperature: -5ºCto +55ºC
Operate Current: < 50mA
Operate Voltage: 7V-9V
Indicator Visual: Red / Green LED
Dimension of Packing: 360 * 150* 500 mm
10. Net Weight of Unit: 300 G
Color: Black
Detection distance
1. 2 pin: 30-60mm;
2. Coins: 75-100mm;
3. 6 inch knife: 160-180mm;
4. 64 gun: 180-195mm;
Specifications:
Technical Standard | Technical Parameter |
Package Size | 360mm * 150mm* 50 mm |
Working frequency | About 20 KHz |
Alarms | sound (or vibration) and light |
Power supply | Standard 6F22/15F8H 9V battery or rechargeable battery(optional) |
Temperature | -15ºC to +55ºC |
Packing | 17/box 6kg/box |
Applications
1. Widely used to check in airports, railway stations, docks, customs, public security, border control and other defense department security checks
2. Also used in medicine, food quality inspection business systems
3. Important place for playground safety inspections
4. Precious metal detection, such as gold and silver jewelry factory
